Flat knife grinder

  • Detail

  • Parameter table

Flat knife grinder
"Applicable to the recycling of plastic materials like boxes, thin tubes, blow molded parts, bottles, shells etc.

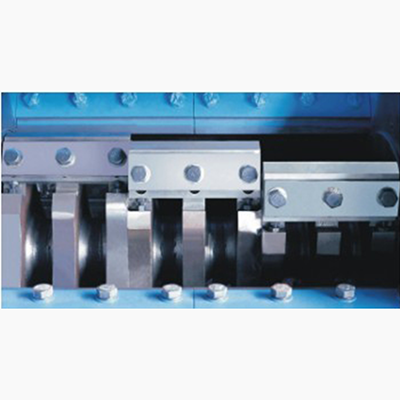

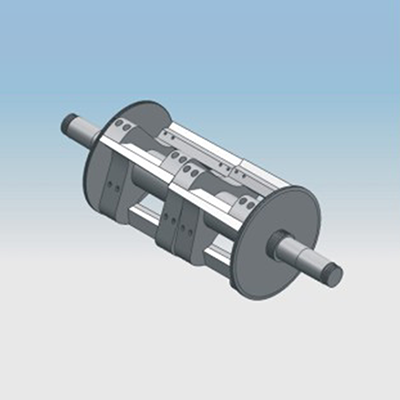

The crusher is easy to operate. The change of knife is quick and easy, and the structure of the flat knife is suitable for crushing large-volume thin-walled and thin-material products. Improve crushing efficiency. With electronically controlled safety design, the hopper adopts a double-layer structure, filled with soundproof material, and the motor is equipped with an overload protection device. The power chain protection system makes the equipment have good safety and environmental protection, saving power and durability. ""
Flat knife grinder
Model number HGD380 HGD500 HGD800 HGD815 HGD960 HGD1100
Crushing diameter (mm) 380x240 504x320 815x470 815x520 960x610 1100x800
Crushing capacity (kg/h) 200-300 300-400 450-600 550-700 600-800 800-1000
Fixed knife 2 2 4 4 4 4
Moving knife 6 6 9 12 12 12
Power KW 7.5 15 22/30 37 55 75
HP 10 20 30/40 50 75 100
Dimensions (L*M*H/CM) 122x84x129 162x107x177 215x149x223 243x166x250 210x176x283 267x205x342
Net weight t(kg) 515 900 2000 2300 3000 6000
