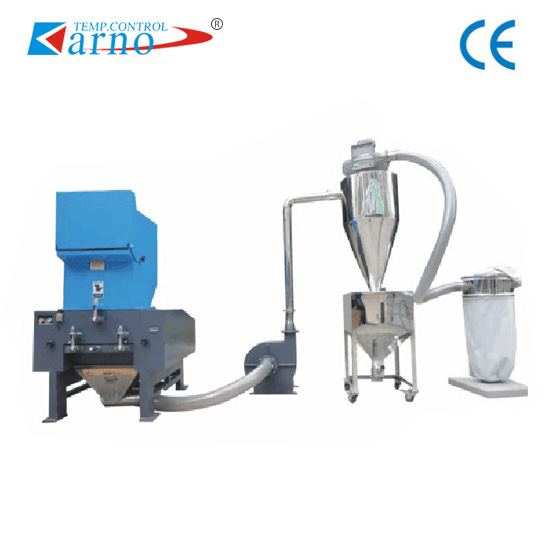

Automatic scrap recycling system

  • Detail

  • Parameter table

1, can be used with any type of crusher.
2. The scraps broken by the crusher are automatically recovered without manual intervention.
3. The parts in contact with raw materials are made of stainless steel (or hose) materials, keeping the raw materials pure.
4, configure the integrated device to absorb dust. Prevent air pollution. Dismantling, cleaning is quick and easy.
5. The unique design of the scissors-type tool holder structure for the crushing of thin film materials is more advantageous for improving work efficiency.
6, optional suction fan, storage tank composition film
7, crusher recycling system to give full play to the recovery efficiency
8, the machine is suitable for broken recycling PE, PP and other film materials
Automatic scrap recycling system
Model number HGF-2HP HGF-3HP HGF-4HP HGF-5HP HGF-7.5HP HGF-10HP
Motor Power 1.5KW/2HP 2.2KW/3HP 3KW/4HP 4KW/5HP  5.5KW/7.4HP 7.5KW/10HP
Spring tube diameter (mm) 76 100 100 127  127 150
Elevator (m) 3 3 4 5 5 5
Cyclonic volume (Kg) 100 100 100 100  100 100
Suitable for crusher models  (HP) 5-10 15-20 30-40 50-75  50-75 100
