Strong Claw Crusher

  • Detail

  • Parameter table

Features:
At medium speed, the horsepower is the least and the efficiency is good.

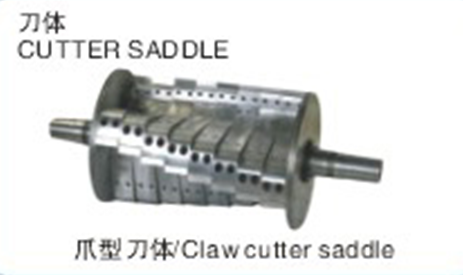

Claw knife, knife and size screen are available.
The uniquely designed Japanese neodymium alloy steel cutters and tools are durable.
The motor is equipped with an overload protection device.
Power chain environmental protection system to ensure the safety of operation.
Easy to remove design, easy to clean and repair.
The minicomputer comes with four wheels for easy movement.
Some models are equipped with cold air or water cooling system for long-term operation.
Model number HGY150 HGY250 HGY380 HGY480 HGY500 HGY700 HGY790
Crushing diameter (mm) 150x160 250x200 380x240 480x290 504x320 700x480 790x550
Crushing capacity (kg/h) 50-80 100-200 200-300 300-350 300-400 450-600 600-800
Fixed knife 2 2 2 2 2 2 4
Moving knife 9 12 18 twenty one twenty one 27 27
Power KW 2.2 4 7.5 11 15 22/30 37/45
HP 3 5 10 15 20 30/40 50/60
Dimensions (L*M*H/CM) 61x48x104 94x62x109 122x84x129 143x91x155 162x107x177 215x143x220 205x171x290
Net weight (kg) 132 290 516 850 900 1800 3000
