Strong blade cutter

  • Detail

  • Parameter table

Features:
At medium speed, the horsepower is the least and the efficiency is good.
Claw knife, knife and size screen are available.

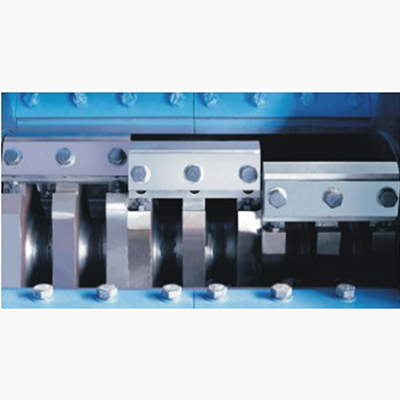

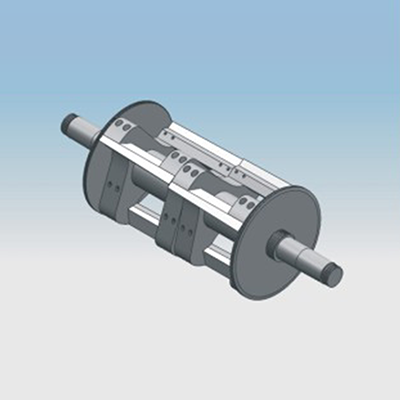

The uniquely designed Japanese neodymium alloy steel cutters and tools are durable.
The motor is equipped with an overload protection device.
Power chain environmental protection system to ensure the safety of operation.
Easy to remove design, easy to clean and repair.
The minicomputer comes with four wheels for easy movement.
Some models are equipped with cold air or water cooling system for long-term operation.
Model number HGP230 HGP300 HGP400 HGP500 HGP600 HGP800
Crushing diameter (mm) 230x200 310x200 410x235 515x290 610x320 815x470
Crushing capacity (kg/h) 100-150 150-200 200-250 300-350 350-450 450-600
Fixed knife 2 2 2 2 4 4
Moving knife 6 9 12 15 18 twenty four
Power KW 4 5.5 7.5 11 15 22/30
HP 5 7.5 10 15 20 30/40
Dimensions (L*M*H/CM) 94x60x109 115x72x122 116x84x131 143x101x155 150x111x173 215x149x222
 Net weight (kg) 288 432 500 900 1100 2000
