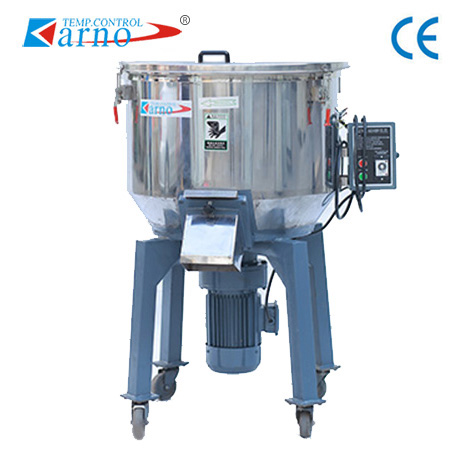

Vertical mixing machine

  • Detail

  • Parameter table

■ The barrel body adopts a conical barrel bottom and is equipped with a profiled pulp blade to complete uniform mixing in a short period of time with high efficiency.
■ The impeller and barrel are made of stainless steel, and the blades can be removed and maintained to increase the service life.
■ Profiling and close-type stirring, large capacity and easy operation.
■ Direct motor drive reduces power loss without slipping.
■ Mix time can be set according to need, stop by itself
Model number Power Capacity (kg) Voltage Overall size (cm) Speed (r/min) net weight
  KW HP
VCM-25 0.75 1 25 3- 380V 72x72x92 85 83
VCM-50 1.5 2 50 3- 380V 83x83x112 85 125
VCM-100 3 4 100 3- 380V 100x100x128 85 180
VCM-150 4 5.5 150 3- 380V 113x113x140 85 270
VCM-200 7.5 10 200 3- 380V 120x120x139 85 313
