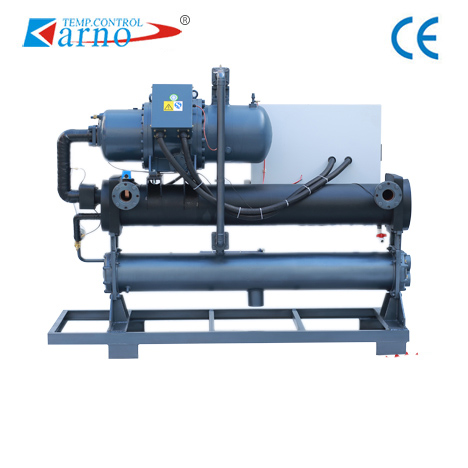

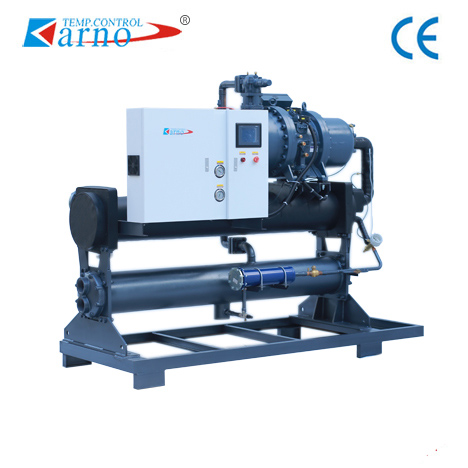

Hanzhong screw chiller

  • Detail

  • Parameter table

Screw Chiller Features
World Famous Brand Compressors
Keno water chiller adopts German BITZER / Italy Lai Fu Kang / Taiwan Fu Sheng / Han Zhong semi-hermetic screw compressor and imported twin-screw series compressor. Twin screw 5:6 gear ratio and advanced linear design save energy and high efficiency.
Efficient valve energy control to achieve graded or stepless control. Balanced design, ultra-quiet operation.
Strict handling of moving parts, special design of oil balance at the exhaust, long maintenance cycle, and more than 40,000 hours of trouble-free operation.
High-efficiency oil separator, with less than 1.5% exhaust gas, effectively improves the heat transfer between two devices, and is more energy-saving and durable.
New High Efficiency Evaporator
Japan Kobe's newest high-efficient internal-threaded copper tube enhances heat transfer and is more energy efficient.
Using the latest CAD/CAM design and processing technology, the CNC machining center is manufactured with a compact structure, small size, and durability. The U-shaped heat exchange tube bundle can be internally pumped to clean the internal scale for easy maintenance.
Dry evaporator, easy to return oil, improve compressor life and system reliability.
Water-cooled condenser
Kobe, Japan's newest efficient external thread copper tube production, heat dissipation, small size.
The use of the latest CAD/CAM design and processing technology, with CNC machining center production, compact structure, high reliability. Beautiful appearance, high efficiency and energy saving.
Microprocessor Control System
Industrial-grade PLC unit centralized control, with the energy-adjusting system of the compressor, can accurately control the matching of cooling capacity and cooling load of the unit in time to ensure that the unit runs with optimum efficiency and reduces operating costs. Internal integrated water protection, low temperature, high and low pressure, antifreeze, phase loss, delay start, reverse phase, overload, motor overheating, oil pressure difference and many other safety protection and processing functions. The Chinese-language operation interface (with Chinese-English translation) and menu-style prompts allow you to arbitrarily set the operating status of the unit and home appliances.
Easy to install
1) Balanced safety, low vibration, simple installation;
2) Compact structure, small footprint, light weight and easy handling;
3) Complete a variety of performance tests before leaving the factory, complete wiring, reduce installation time and costs.
Run reliably
1) The unit adopts multiple refrigeration circuits;
2) Realize the interlocking control of the water system and the unit;
3) Compressor unloading step-down startup, starting current is small;
4) The motor adopts the world's most advanced Japan PTC thermal protection, and the protection is more sensitive and reliable.
Water-cooled screw chiller parameters table
Model KNR- 510WS 600WS 670WS 840WS 910WS 1280WS 1500WS 1700WS
Cooling capacity X1000kal/h 439 516 576 722 783 1101 1290 1462
Kw 510 600 670 840 910 1280 1500 1700
Ton 145 170.6 190.5 238.8 258.7 363.9 426.5 483.4
Voltage 3PH-380V-50/60HZ
Compressor Power KW 100 119 132 167 180 252 295 334
Operating current A 170 202 225 285 307 430 504 570
Ability adjustment 0-25%-50%-75%-100%
protective device Phase sequence protection, over-current protection, ice protection, exhaust temperature protection, high and low pressure protection, flow protection, safety valve
Condenser Shell and tube
Condenser inlet and outlet diameter 4" 5" 5" 5" 5" 8" 8" 8"
Cooling water flow (m3/h) 87.7 103.2 115.2 144.5 156.5 220.2 258 292.4
Evaporator Shell and tube
Evaporator inlet and outlet diameter 4" 5" 5" 5" 5" 8" 8" 8"
Frozen water flow (m3/h) 87.7 103.2 115.2 144.5 156.5 220.2 258 292.4
Dimensions (MM) L 3000 3000 3600 3600 3600 3700 3700 4200
W 1500 1500 1500 1500 1500 1750 1750 1750
H 1500 1550 1650 1700 1700 1750 1800 1800
Weight (kg) 2400 2550 2930 3250 3570 4260 4420 4780
