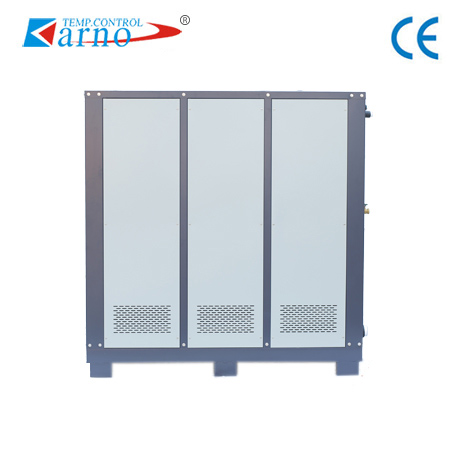

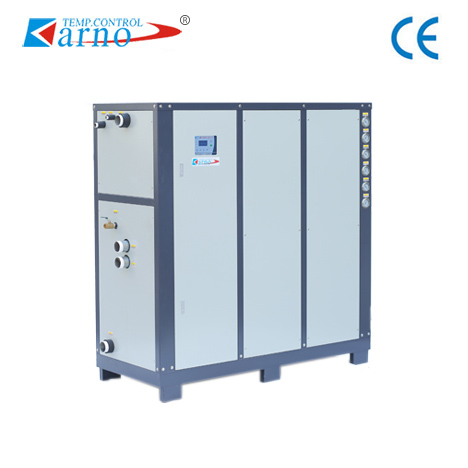

Water-cooled chiller 15-50WC

  • Detail

  • Parameter table

Cold machine use:
1, mold cooling in the plastics industry;
2, electroplating tank plating cooling;
3, ultrasonic cleaning fluid cooling;
4, chemical industry cooling;
5, various cooling food industry;
Water Chiller Features:
World Famous Scroll Compressor Water Cooled Shell Condenser
High-efficiency copper tube with stainless steel water tank Display set temperature and actual temperature
Precision Control Panel Compressor Switch Button
Power switch Water pump switch
Electronic Thermostat Operation Indicator
Efficient imported circulating pump safety alarm system
Compressor overload protection pump overload protection
High and low pressure protection Import dry filter
Error code display Accurate temperature control range 5°C-25°C
Keno's Digital Vortex Chiller Advantage:
With the latest development of digital scroll compressors, energy savings of 30% can be achieved.
Low-noise quiet and vibration-free operation, eco-friendly and ecologically efficient.
The interface is more user-friendly and the temperature control needs are always available.
24000 hours of trouble-free operation.
Compact internal structure, scientific and rational design, beautiful and generous.
It occupies less space, moves, and replaces the use position is very convenient.
Reduce maintenance costs, Keno chiller optimization system can save 20% -30% cost.
High-efficiency circulating pump for rapid cooling, faster cooling.
Type Model
      KN-2WC KN-3WC KN-5WC KN-6WC KN-7WC KN-8WC KN-1OWC KN-12WC KN-15WC KN-20WC KN-25WC KN-30WC KN-40WC KN-50WC
Cooling capacity 50HZ Btu/h 23898 33457 42334 57014 66232 77498 110614 12890 148168 221227 267316 296335 442454 534632
KW 7 9.8 12.4 16.7 19.4 22.7 32.4 36.9 43.4 64.8 78.3 86.8 129.6 156.6
Kcal/h 6019 8426 10662 14359 16681 19518 27859 31734 37317 55718 67326 74635 111436 134652
Ton 2 2.8 3.5 4.7 5.5 6.5 9.2 10.63 12.3 18.4 22.3 24.7 36.8 44.5
Voltage 220V-1PH-50HZ 380-415V---3PH-50HZ/60HZ
Compressor power KW 1.82 2.31 3.8 4.56 5.3 6.02 7.82 9.05 11.24 15.3 18.67 22.68 30.52 37.8
Throttle Capillary Thermal expansion valve
Refrigerant R22/R407
Condenser  Types of Shell and tube
DN 25 32 32 32 40 40 50 50 50 65 65 65 80 80
M3/h 1.52 2.13 2.65 3.66 5.25 4.86 7.1 8.5 9.34 14.2 16.75 18.69 27.92 33.74
Evaporator Types of                         Water Tanks Type/shell type
Water tank capacity L 35 55 55 55 75 145 210 280 360 510 510 510 600 780
Chilled water flow M3/h 1.21 1.69 2.14 2.88 3.34 3.91 5.58 6.8 7.48 11.16 13.49 14.95 22.32 26.97
Frozen water inlet DN 25 25 32 32 32 32 40 50 50 65 65 65 80 80
Pump HP 0.5 0.5 0.5 1 1 1 1 1 2 2 3 3 5 7.5
Weight KG 110 120 130 185 200 315 355 600 650 750 1050 1360 1390 1420
